Digital Process Engineering of Sustainable Power2X Processes

Modeling, simulation, and optimization are important methodological pillars of digital engineering and have triggered a revolution in the way we approach things. Spearheaded by applications in mechanical engineering and logistics, also chemical engineering and information technologogy have been witnessing an explosion of computational approaches. This trend is further accelerated by availability of data, open source software, hardware improvements, and interdisciplinary approaches and cooperations. At the same time, we have been entering a transition phase towards a sustainable energy policy using several fluctuating energy sources.

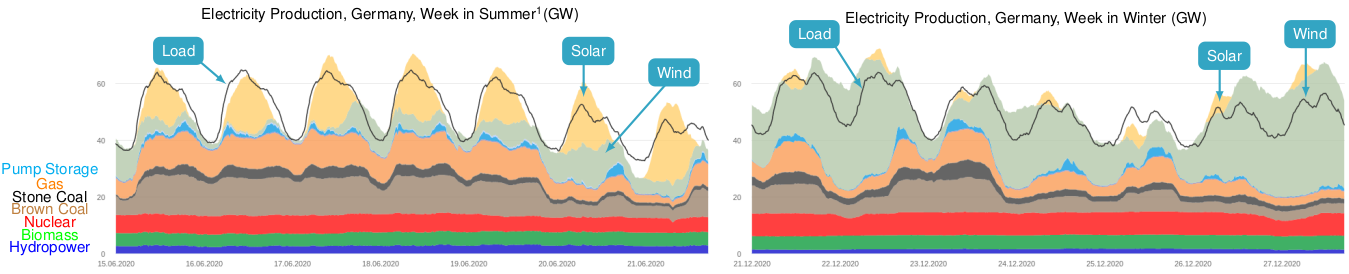

Electricity load in Germany for two exemplary weeks, showing the impact of renewable energy.

Electricity load in Germany for two exemplary weeks, showing the impact of renewable energy.

Power2X is the name for a number of electricity conversion, energy storage, and reconversion pathways that use surplus electric power, typically during periods where fluctuating renewable energy generation exceeds load, as indicated in the example illustration above.

It is important to do this conversion efficiently, as massive installations and import of renewable energies are necessary to reduce CO2 emissions. Here E-Fuels (H2, CH4, CH3OH, OME) made from renewable energy and CO2 are an attractive option. The flexible design and operation of Power2X processes by optimization and optimal control can give insight into the most promising solutions.

However, there are many challenges to a computational approach. Usually, there are many different units / processes involved, often modeled via complicated partial differential equation (PDE) models and involving still unknown/unmodeled mechanisms. In addition there are uncertainties in the fluctuating inputs (electricity, products of biogas plants) and demand imposing intelligent storage solutions. The design of novel processes is impaired by many combinatorial choices.

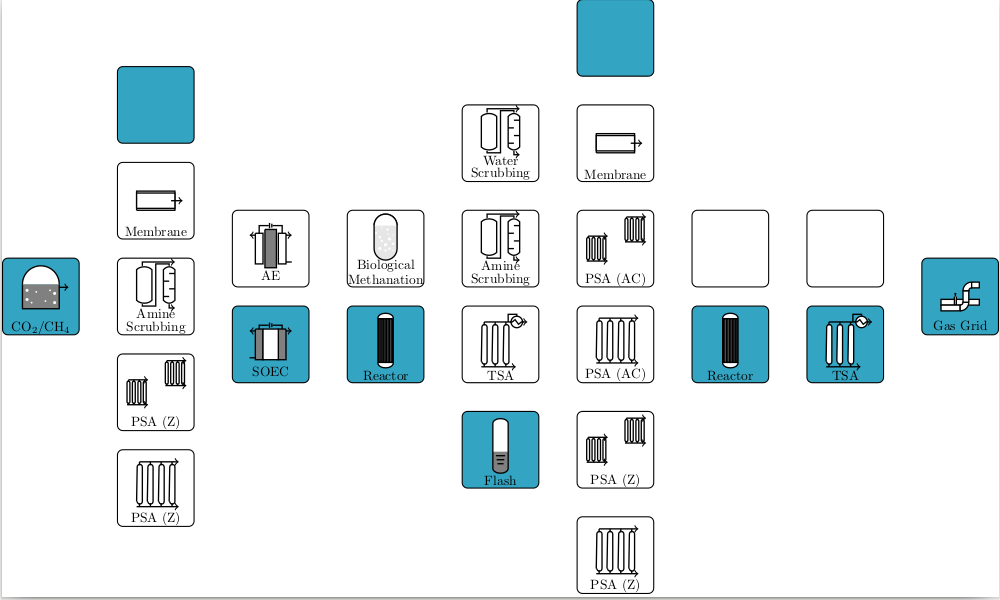

The following figure from the paper CO2 Methanation Process Synthesis by Superstructure Optimization shows an optimal Power2Methane choice for particular assumptions on available processes in a preimposed order (one choice per column possible) and particular purity constraints and objective function specifications. It was calculated based on steady-state assumptions with an optimization-driven software solution developed in my group. An extension to transient processes and a clever interaction between detailed PDE models and underestimating surrogate models is ongoing work.

Discrete choices in Power2Methane.

Discrete choices in Power2Methane.

We have been working on storage capacities in electricity grids and on the optimal design and control of Power2X processes, with a focus on Methane and Methanol as energy carriers.
